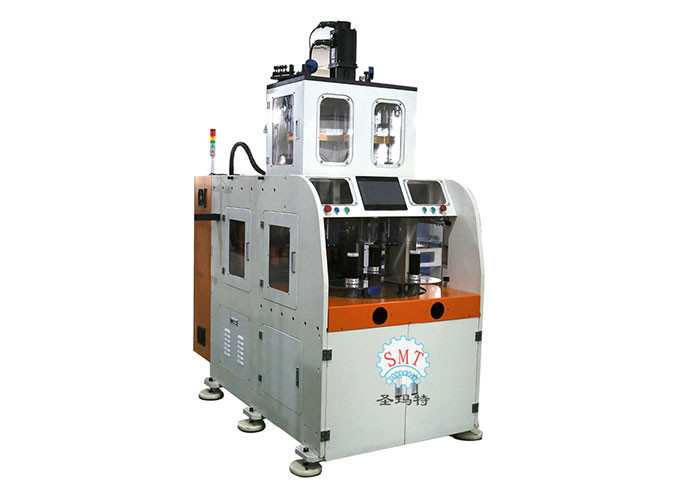

380V 7Kw Full-Automatic Stator Winding Machine with 12 Months Warranty for High Efficiency Washing Machine Manufacturing

Produk

Peralatan Pengujian Motor Listrik

Memasukkan Dan Drifting Machine

Hubungi Kami

sales5@smt-winding.com

+86-13914006446

Hubungi Sekarang

380V 7Kw Full-Automatic Stator Winding Machine with 12 Months Warranty for High Efficiency Washing Machine Manufacturing

MOQ:	1 set
Harga:	Dapat dinegosiasikan
Kemasan Standar:	Kasus Kayu Cocok untuk Transportasi Laut.
Periode Pengiriman:	80 - 100 hari untuk 1set
Metode Pembayaran:	T/t, l/c
Kapasitas Pasokan:	2pcs/ 56 - 80 hari

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

Nama merek

Sertifikasi

ISO9001/SGS/CE

Nomor model

SMT-SLR150

Nama:

Mesin belitan listrik untuk stator

Kecepatan kawat:

≤3000r/mnt

Nomor Transfer:

2-6 buah

Catu daya:

380V/50/60Hz 7KW

Kondisi:

Jaminan:

12 bulan

Kepala berliku:

1 pcs

Tinggi Tumpukan Maks:

≤70mm

Kehidupan Cetakan:

> 1.000.000 bidikan

Nilai otomatis:

Penuh Otomatis

Menyoroti:

380V Stator Winding Machine

7Kw Automatic Stator Winding Machine

12 Months Warranty Electrical Winding Machine

Deskripsi Produk

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head

This machine features two winding heads with four working stations, capable of simultaneously winding main and auxiliary phases. Designed for high production capacity applications, it achieves high slot filling rates and is particularly suitable for stators with small slot openings. Operation modes including auto skip, auto cutting, and auto indexing can be selected via the touch screen interface.

Main Technical Data

Model	SMT-LR100	SMT-LR150I	SMT-LR150 II	SMT_LR200	SLR70	QLR70
Winding Head	1	1	1	1	2	4
Wire Diameter(mm)	0.3~1.0	0.3~1.0	0.3~1.2	0.3~1.2	0.2~1.0	0.2~1.0
Unload Speed	≤2500r/min	≤2500r/min	≤2500r/min	≤2000r/min	3000	3000
Stack Height	≤80mm	≤120mm	≤150mm	≤230mm	≤70mm	≤70mm
Winding Precision	+ 0	+ 0	+ 0	+ 0	+ 0	+ 0
Power Supply	380v/50/60HZ 8Kw	8Kw	9Kw	7Kw	7Kw	7Kw
Air Pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa	≥0.6pa	≥0.6pa
Weight	≈1350Kg	≈1600Kg	≈1600Kg	≈2200Kg	≈1950Kg	≈2300Kg
Dimension (L×W×Hcm)	180×110×200	180×120×220	180×130×230	220×180×250	180×130×205	135×100×180

Key Features

Double winding heads with turntable design for efficient operation
Servo-controlled main spindle with ±1 turn accuracy
PLC-controlled parameters including turn number, winding speed, and tension
Supports both continuous and discontinuous winding methods
Capable of handling 2, 4, and 6 pole coils
Tooling change can be completed in approximately 15 minutes
Automatic wire detection with machine stop function
Low vibration and noise operation
Touch screen interface for easy operation and monitoring

Applications

This automatic stator winding machine is ideal for manufacturing single-phase induction motors and three-phase motors. It is widely used in household appliance production including washing machines, fans, refrigerators, air conditioners, vacuum cleaners, and various personal care appliances.

Maintenance Guidelines

Conduct pre-operation checks of mechanical, electrical, and hydraulic components
Clean dust and reset machine after each use
Clean electrical components every three months
Regularly check and maintain hydraulic system filters and lubricators
Inspect guide mechanism lubrication status
Check magnet valve screws and pipe joints quarterly
Inspect filters and air filters every two months
Annual air pressure check recommended
Regular mechanical oil application required
