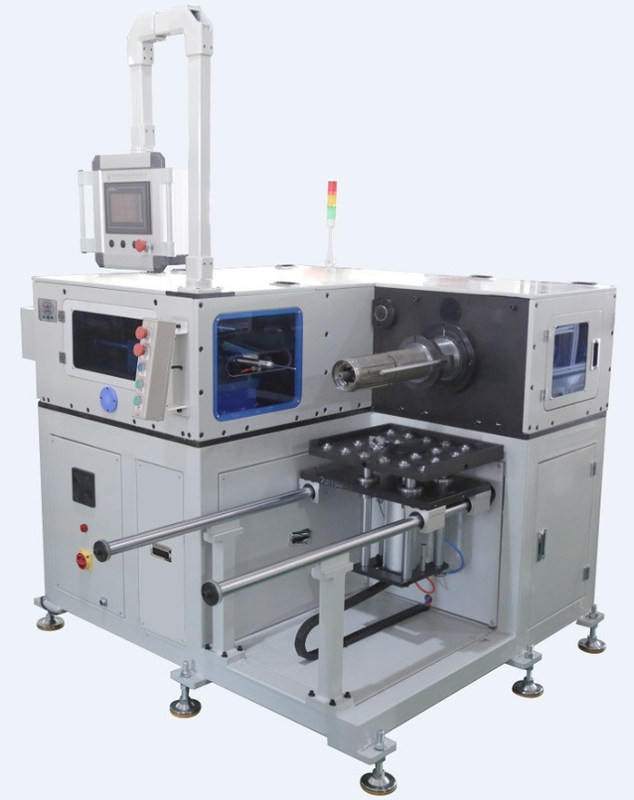

Automatic 7Kw Power 3-Phase 380V/50Hz Stator Lacing Machine with 1050kg Weight for 100-200mm ID Stators

MOQ: 1 set
Harga: Dapat dinegosiasikan
Kemasan Standar: Kotak Kayu Lapis Dengan Penyegelan
Periode Pengiriman: 8-10 minggu
Metode Pembayaran: T/t, l/c
Kapasitas Pasokan: 1 pcs/7-11 minggu
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal
CINA
Nama merek
SMT
Sertifikasi
ISO/SGS Audit
Nomor model
SMT-DW350A
Menyoroti:

7Kw Power Stator Lacing Machine

,

3-Phase 380V/50Hz Stator Lacing Machine

,

1050kg Weight Stator Lacing Machine

Deskripsi Produk
Single Side 100-200mm ID Stator Lacing Machine
Product Description
Single Side Lacing Machine 100-200mm Stator ID ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and similar applications.
For stator winding inserting machine inquiries, please provide detailed drawings including:
  • Stator lamination drawing
  • Stator stack drawing
  • Wire connection drawing
  • Stator application details
Main Technical Features
Single needle automated lacing with servo motor control for needle transposition, stator indexing, and vertical needle movement. Features horizontal movable fixture for efficient stator loading/unloading.
Model SMT-DW350A
Core length 80~260mm
Stator I.D Φ100-200mm
Stator O.D Φ170-260mm
Stack Height Range 90-220mm
Coil End Height 60-80mm
Oil Cylinder Displacement 20L
Air Pressure 0.5～1MPa
Power 7Kw
Power supply 3-Phase 380V/50Hz
Weight 1050kg
Dimension (L)1500×(W)1350×(H)1500mm
Applications
Designed for new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise covers complete motor production technology including stator/rotor core assembly, slot insulation, winding, inserting, fusing, and resin impregnation.
Our Service
We prioritize product quality and service excellence to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are committed to being your reliable partner for long-term business relationships.
OEM/ODM Capabilities
  • Innovative technical team providing customized solutions
  • Specialized after-sale service with door-to-door support
  • Extensive domestic and international service network
  • 24/7 customer support through multiple communication channels
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design and production. With 150 employees including 30+ engineers, 20,000m² facility, and ISO9001:2000 certification, we provide complete production lines for various motor types from coil winding to final stator forming.
