Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes
-
Menyoroti
Automatic Servo Control Stator Lacing Machine
,Double Sides Lacing Stator Lacing Machine
,Programmable Lacing Modes Stator Lacing Machine
-
NamaKumparan Stator Motor Sisi Ganda Servo Otomatis Ternyata Mesin Hantaman SMT - BZ190
-
ModelSMT-BZ190
-
ID statorΦ110~ Φ210mm
-
OD Stator≤Φ300mm
-
Tinggi Tumpukan≤50mm
-
Catu daya380V/50/60Hz 3.5Kw
-
Nomor Slot8~48 Slot
-
Kemasan1 Kotak Kayu Lapis
-
Tempat asalCINA
-
Nama merekSMT
-
SertifikasiISO / SGS Audit
-
Nomor modelSMT-BZ190
-
Kuantitas min Order1 set
-
HargaDapat dinegosiasikan
-
Kemasan rincianKemasan Kotak Kayu
-
Waktu pengiriman46 - 68 hari
-
Syarat-syarat pembayaranT/t, l/c
-
Menyediakan kemampuan1pcs / 46 - 68 hari
Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes

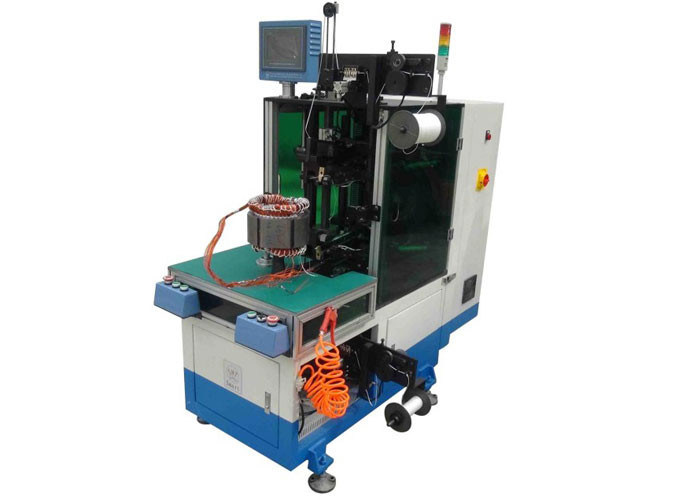

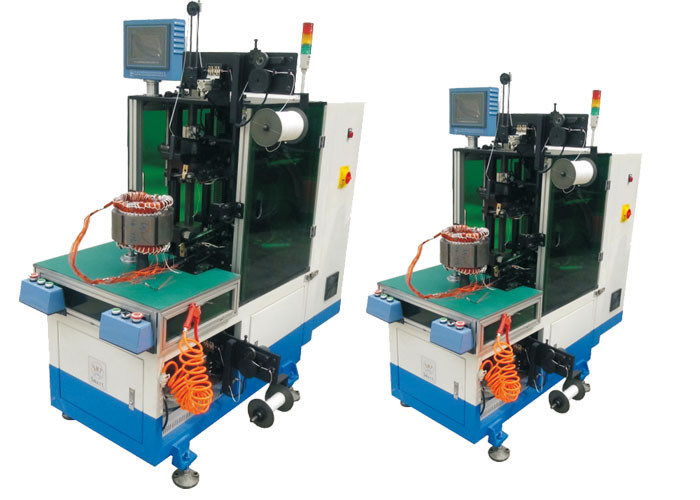

The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
| Model | BZ190 |
|---|---|
| Stack height | 60-180mm |
| Stator I.D | 110-210mm |
| Stator O.D | ≤ 300mm |
| Height of Overhang | ≤50mm |
| Lacing mode | Slot by slot / interval slot/Fancy lacing |
| Lacing speed | 0.8s/s |
| Power supply | 380v/50/60Hz 3.5kw |
| Machine weight | About 900kg |
| Machine dimension (LxWxH) | 1500x 650x 1800mm |
- Servo driven system with CNC control design and HIM program
- Servo-driven indexing with programmable lacing modes (slot, interval, fancy)
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper/lower coil lacing
- Automatic thread feeding and cutting (no knots required)
- Quick tooling change capability (50-130mm stator stack length range)
- Adjustable lacing tension with production capacity ≤1s/slot
- Prevents copper wire snap and wire enamel damage
- Primary qualification rate ≥98.5%, after rework ≥99.5%
- Safety grating protection system with two-hand operation requirement
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Programmable lacing methods (slot-by-slot, interval, fancy)
- Ideal for large stators with high winding over-hang
- Movable tooling for fast stator loading/unloading, reducing labor requirements
We specialize in motor machinery production including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. Utilizing advanced international technology and processes, we enhance electromechanical automation with stable quality and exceptional customer service.
Our service philosophy combines wisdom, humanity, technology, and global progress to meet diverse customer needs and create successful partnerships.
With professional expertise and reliable quality, we provide comprehensive motor manufacturing solutions including:
- AC/DC/BLDC motor manufacturing consulting
- Turn-key project services
- Motor cost evaluation
- Manufacturing know-how
- Staff training
